Imagine stepping into a warm, relaxing shower without a single thought about your electricity or gas bill. For many of us, that sounds like a dream, but what if we told you it’s a reality—and you can build it yourself using little more than discarded plastic bottles?

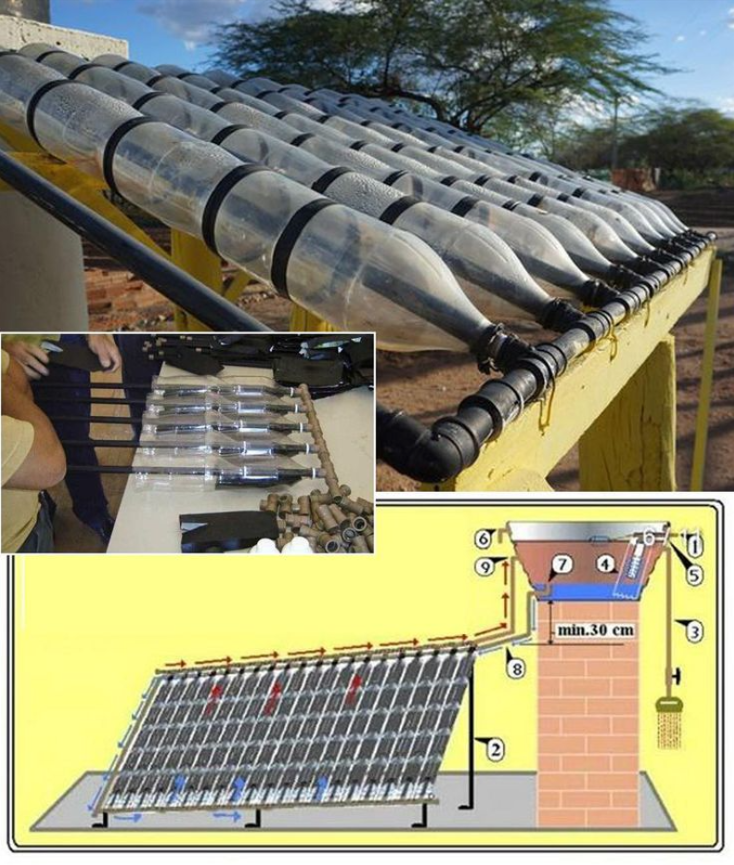

This amazing invention, shown in the image, is a DIY solar water heater. It’s a brilliant, low-cost solution that harnesses the power of the sun and the principle of upcycling. Instead of ending up in a landfill, plastic bottles are given a new, incredibly useful purpose: collecting solar energy to heat your water. It’s an ideal project for anyone looking to save money, reduce their carbon footprint, and live more sustainably.
How Does It Work?
The science behind this system is surprisingly simple. It relies on a principle called the thermosiphon effect. Here’s the breakdown:
- Solar Collector: The array of plastic bottles and pipes acts as a solar collector. The bottles are painted black to absorb as much heat from the sun’s rays as possible.
- Heat Absorption: As the sun heats the bottles, the water inside them gets warmer.
- Natural Circulation: Warm water is less dense than cool water. This causes the heated water to naturally rise from the bottles and into an elevated storage tank. At the same time, cooler water from the bottom of the tank flows down to the collector to be heated, creating a continuous, natural circulation.
- Hot Water on Tap: With a few simple pipes and valves, the hot water from your storage tank can be delivered to your shower, sink, or wherever you need it. The entire process works without any pumps or electricity.
DIY: Building Your Solar Water Heater
Ready to start saving on energy? Here’s a simplified guide to making your own plastic bottle solar heater.
What You’ll Need:
- Plastic Bottles: Around 100-200 clear 1.5-2 liter bottles.
- PVC Pipe: Sections for the main water manifold, fittings, and connectors.
- Black Spray Paint: For painting the bottles and PVC pipes to maximize heat absorption.
- Rubber Washers or Sealant: To create watertight seals where bottles connect to the pipes.
- Wooden or Metal Frame: A sturdy frame to support the array, angled towards the sun.
- Water Storage Tank: A raised tank (at least 30 cm above the collector) to hold the heated water.
Step-by-Step Instructions:
- Prepare Your Materials: Clean all of the plastic bottles and remove their labels. Paint the outside of each bottle and all of the PVC pipes with black paint. This is the most crucial step for heat absorption.
- Build the Collector Array: Assemble your PVC pipe into a manifold (a series of parallel pipes connected by larger, perpendicular pipes). Carefully cut holes into the PVC pipes and attach your bottles, making sure each connection is airtight. You can use rubber washers or a high-quality sealant for this.
- Construct the Frame: Build a strong frame from wood or metal to hold the entire collector array. Position it in a sunny location and angle it for maximum sun exposure.
- Connect the System: Connect the bottom of your solar collector to the cold water supply of your elevated tank. Then, connect the top of the collector to the top of the tank. This creates the loop for the thermosiphon effect. Finally, run a pipe from the bottom of the tank to your shower or faucet.
- Fill and Enjoy: Fill your tank and collector with water. Let the sun do the work. After a few hours of direct sunlight, you’ll have a tank full of hot water ready to use, completely free of charge.
This project is a powerful example of how simple, accessible technology can provide a sustainable alternative to traditional energy sources. What creative, eco-friendly projects have you tried?
